In this tutorial you will create a web services method that will return the questions configured for the Survey module
1) Install IWeb module and the Survey module in the DotNetNuke website.

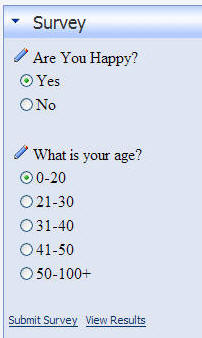

2) Place an instance of the Survey module on a page and create a Survey.
This will ensure that you have data to return in the web method you will create.
3) Open the DotNetNuke site in Visual Studio (or Visual Web Developer Express)
4) Under the IWEB folder, that is under the App_Code folder right-click on the IWebMethods folder and select Add New Item...

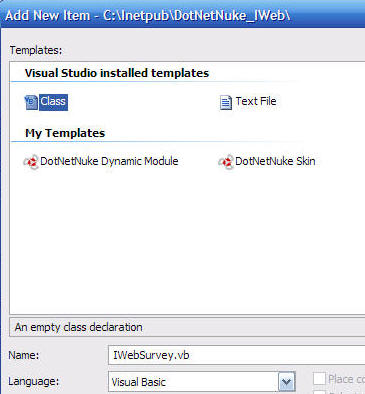

5) Choose Class for the template and enter IWebSurvey.vb for the name
6) The file will be created
7) Copy and paste the following code in the file and save it:
Namespace DotNetNuke.Modules.IWeb
Public Class SurveyInfo
' local property declarations
Public SurveyId As Integer
Public ModuleId As Integer
Public Question As String
Public ViewOrder As Integer
Public OptionType As String
Public CreatedByUser As Integer
Public CreatedDate As Date
Public Votes As Integer
End Class
Partial Public Class WebService
" GetSurveys *DotNetNuke* |IWEB Core| #IWEB Misc# !Portal! "), SoapHeader("IWebCredentials")> _
Public Function GetSurveys() As List(Of SurveyInfo)
Dim SurveyInfolist As List(Of SurveyInfo) = New List(Of SurveyInfo)
Dim objIWebAuthendication As New IWebAuthendication(IWebCredentials)
If Not objIWebAuthendication.ValidAndAuthorized() Then
Dim SurveyInfo As SurveyInfo = New SurveyInfo
SurveyInfo.Question = "Not Authorized"
SurveyInfolist.Add(SurveyInfo)
Return SurveyInfolist
End If
Dim mySqlString As String = ""
mySqlString = "SELECT * FROM {databaseOwner}{objectQualifier}Surveys"
Using dr As IDataReader = _
CType(DotNetNuke.Data.DataProvider.Instance().ExecuteSQL(mySqlString.ToString(), Nothing), IDataReader)
While dr.Read
Dim SurveyInfo As SurveyInfo = New SurveyInfo
SurveyInfo.SurveyId = Convert.ToInt32(dr("SurveyId"))
SurveyInfo.Question = Convert.ToString(dr("Question"))
SurveyInfo.OptionType = Convert.ToString(dr("OptionType"))
SurveyInfo.ViewOrder = Convert.ToInt32(ConvertNullInteger(dr("ViewOrder")))
SurveyInfo.CreatedByUser = Convert.ToInt32(dr("CreatedByUser"))
SurveyInfo.CreatedDate = Convert.ToDateTime(dr("CreatedDate"))
SurveyInfolist.Add(SurveyInfo)
End While
End Using
Return SurveyInfolist
End Function
Private Shared Function ConvertNullInteger(ByVal Field As Object) As Integer
If Field Is DBNull.Value Then
Return 0
Else
Return Convert.ToInt32(Field)
End If
End Function
End Class
End Namespace

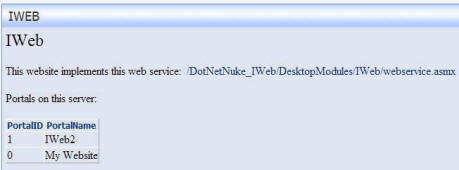

8) In the web browser, place an instance of the IWEB module on a page and configure it.
Then click on the link that appears after "This website implements this web service:"
9) The method will now appear in the list
Creating a IWEB Extension
Follow these steps to create a DotNetNuke module package that can be installed in a DotNetNuke portal that has the basic IWEB package installed.
Understanding the IWEB expansion model.
IWEB uses partial classes to allow you to create additional web services methods without replacing or re-installing IWEB.
In the App_Code/IWeb/IWebMethods folder,
all the class files are partial classes of the DotNetNuke.Modules.IWeb.WebService class.
All the class files will be compiled into a single DotNetNuke.Modules.IWeb.WebService class.
The methods will then be available through the /DesktopModules/IWeb/webservice.asmx file that is tied to that class.
When creating an additional IWEB method, you follow the steps in the tutorial above and package your new method in a DotNetNuke module package (see this tutorial on how to do that).
Putting the class file in the correct place
In order to work the class file containing your new web method must be placed in the App_Code/IWeb/IWebMethods folder. To do this you create an entry such as this in the .dnn file that is contained in your module package
[app_code]../IWeb/IWebMethods
IWebSurvey.vb
The ../IWeb/ in the path causes the file to be placed in the proper directory.
You can download the complete module (Survey Module Extension) from the Download Page.
